Miter Band Saw Machines
RAXMEKBANDSAW provides high-precision industrial metal cutting solutions, including our 0-60 Degree Variable Frequency Miter Band Saw, H Beam Angle Cutting Miter Band Saw HX-33 50S, 45 Degree Miter Band Saw with Material Stand HX-33N, Double Miter Band Saw PX-25 46S, Swivel Head Miter Band Saw UPX-33S, and Heavy Duty Angle Cutting Band Saw UPX-43S.
Advanced Metal Sawing Solutions
As a leading metal cutting bandsaw machine manufacturer in China, RAXMEKBANDSAW CNC pursues advanced sawing technology and stable hydraulic systems. We provide high-precision, high-efficiency swivel head miter band saws, double-column angle cutting machines, and specialized double-miter bandsaws like our HX-33 50S, HX-33N, PX-25 46S, UPX-33S, and UPX-43S models to support your workshop productivity.
Our Metal Cutting Band Saw Lineup

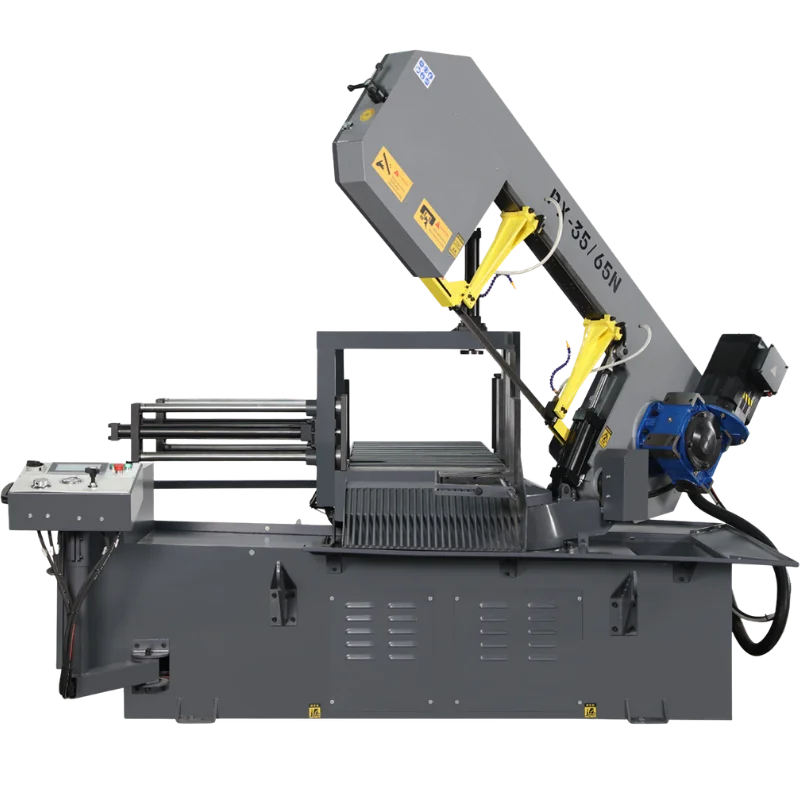

0-60 Degree Variable Frequency Miter Band Saw
- Heavy-duty horizontal miter band saw machine designed for precise angle cutting from 0° to 60°
- Infinitely variable blade speed regulation via VFD inverter drive to match various metal profiles
- Manual or hydraulic swiveling saw frame with easy-to-read scale for quick angle adjustments
- Hydraulic automatic clamping vise and controlled downfeed cylinder for optimal cutting stability
- Precision carbide blade guide blocks and backing bearings to ensure straightness on miter cuts
- Integrated flood coolant system and manual chip drawer for clean sawing operations

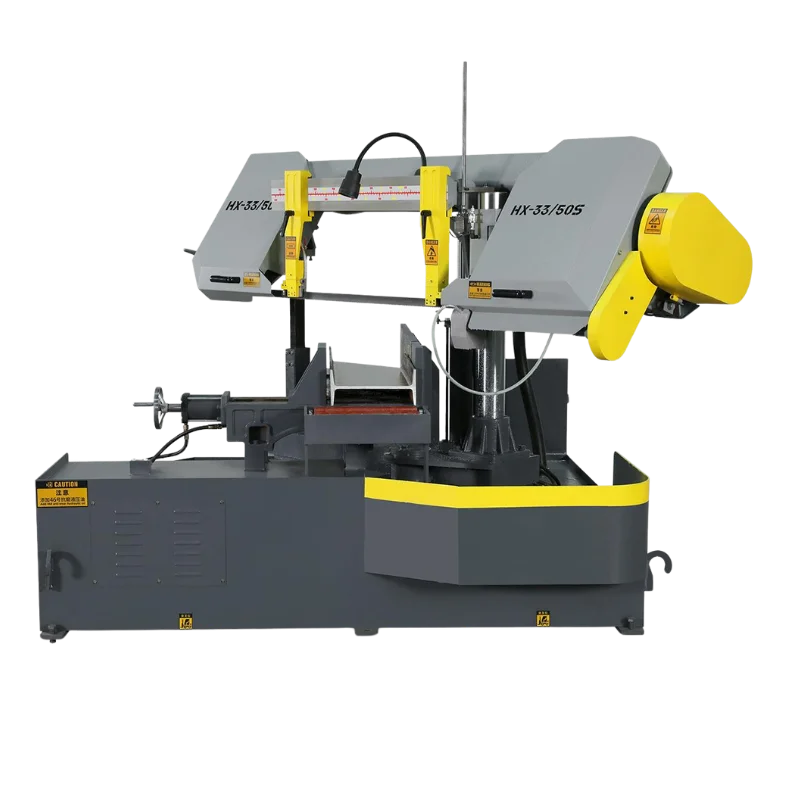

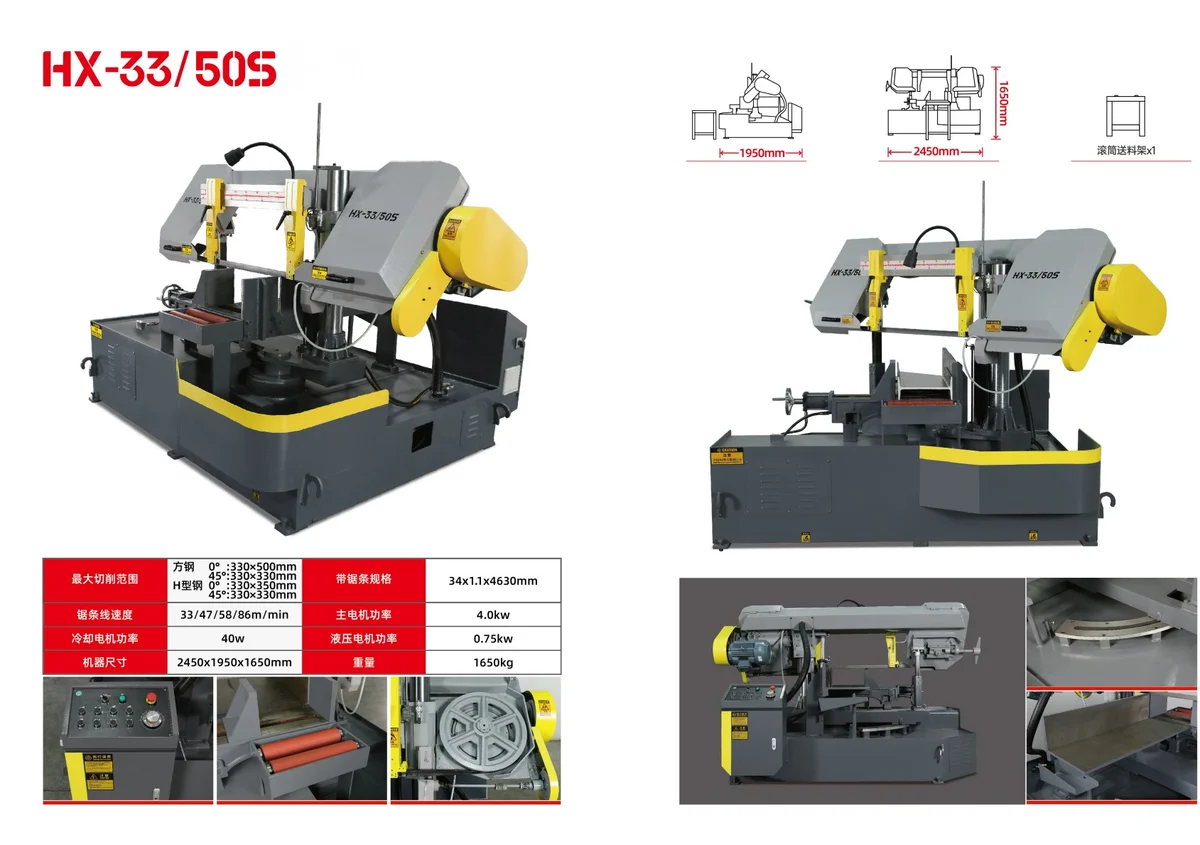

H Beam Angle Cutting Miter Band Saw HX-33 50S
- Double-column miter band saw machine engineered for angle cutting of H-beams, channel steels, and tubes
- Dual-direction swiveling saw frame allowing miter cuts left and right without rotating the material
- Large capacity supporting cutting widths up to 500mm and heights up to 330mm for structural profiles
- High-torque gear reducer transmission system coupled with 4.0 kW main motor for smooth metal sawing
- PLC controller interface for programming miter angles, cut lengths, and piece quantities automatically
- Includes integrated flood coolant, automatic scraper chip conveyor, and laser line generator

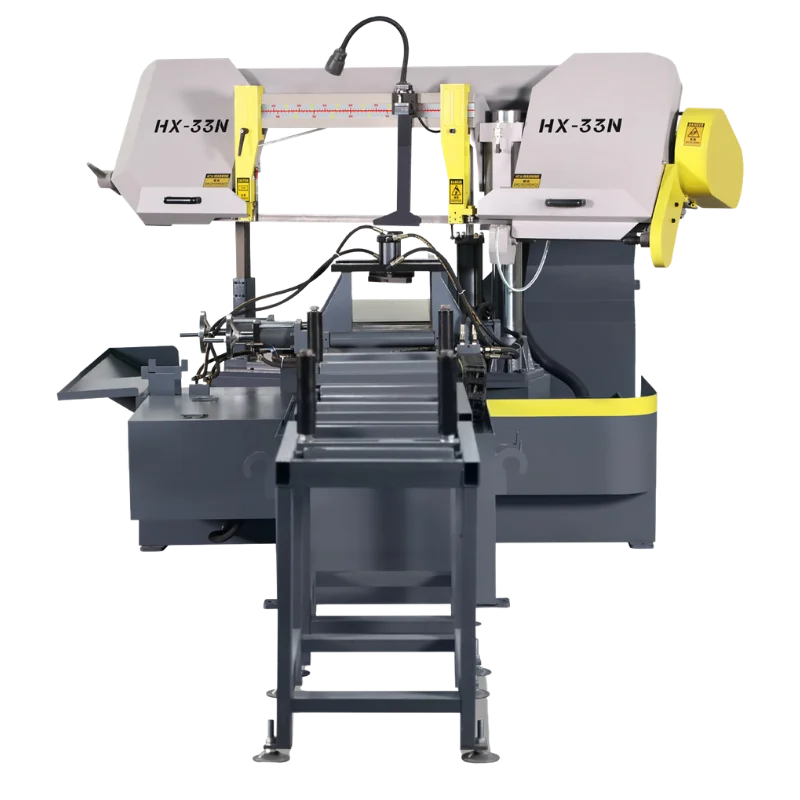

45 Degree Miter Band Saw with Material Stand HX-33N
- Horizontal pivot-style miter bandsaw optimized for quick 45-degree angle cuts on pipes and bars
- Comes standard with heavy-duty material roller stand for supporting long profiles and pipes
- 330mm maximum cutting capacity with reliable hydraulic clamping and downfeed rate control
- Equipped with automatic shut-off limit switch that stops the motor upon cut completion
- Adjustable blade guide arms with carbide pads and roller bearings for high sawing straightness
- Compact and rigid construction suitable for general metal fabrication shops and maintenance rooms

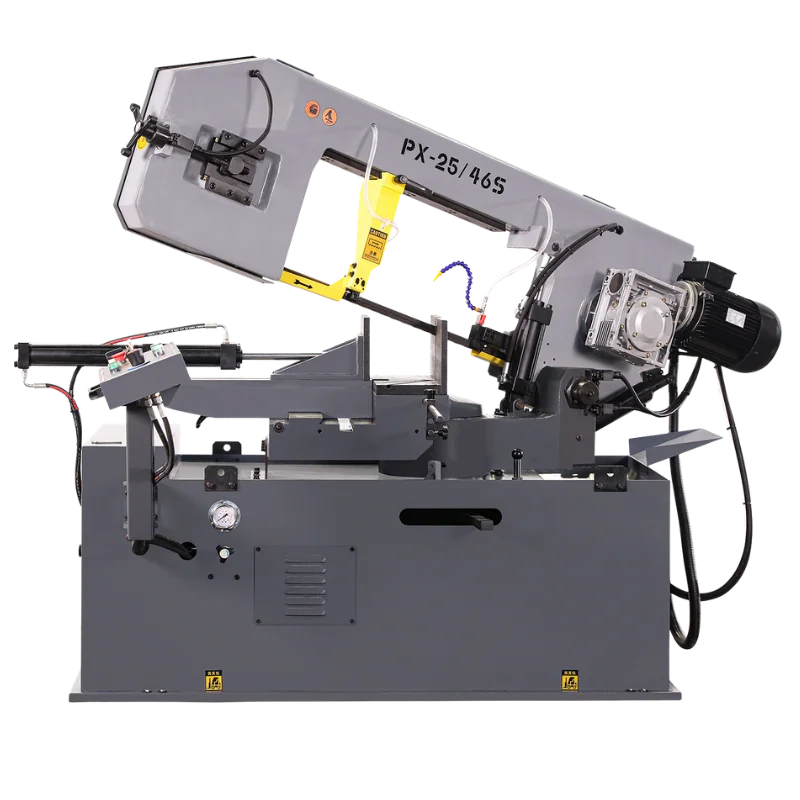

Double Miter Band Saw 0-45° / -0-60° PX-25 46S
- High-performance double miter band saw supporting cutting angles from 0° to 45° left and 0° to 60° right
- Rigid double-column gantry structure designed to eliminate vibrations during structural steel angle cutting
- Cutting capacity of 250mm height and 460mm width, ideal for medium-sized profiles and beams
- Hydraulic sliding clamping vise automatically moves with the saw frame rotation to secure workpiece
- Variable speed motor with gear transmission for adjusting blade speeds to carbon steel or stainless
- Integrated coolant pump, powered blade cleaning wire brush, and metal scrap collection container

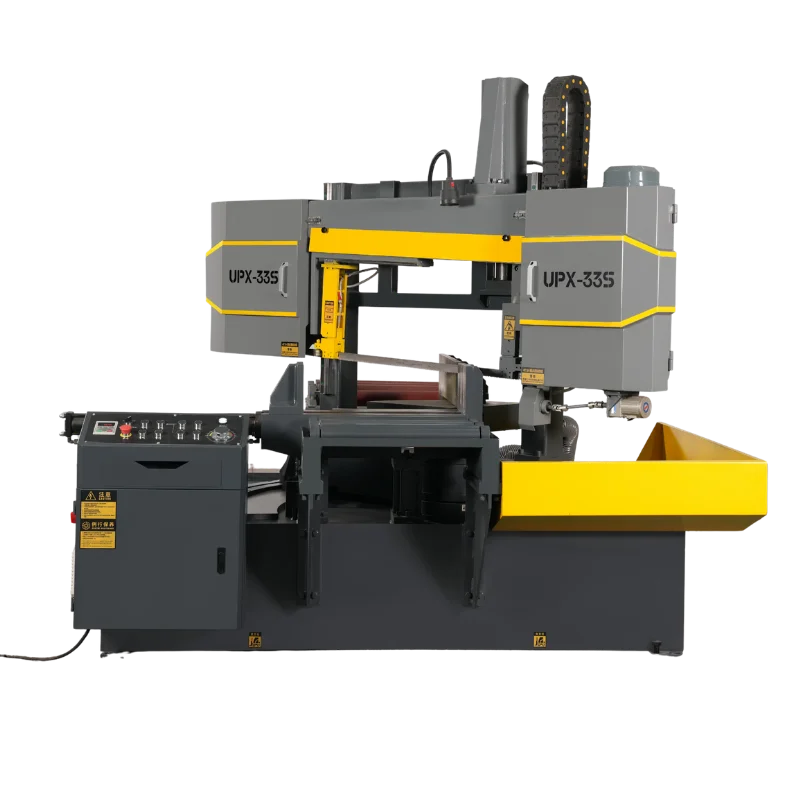

Swivel Head Miter Band Saw UPX-33S
- Industrial swivel-head horizontal band saw allowing the saw head to rotate for angles instead of the material
- Semi-automatic hydraulic control for clamping, saw head lift, and proportional valve downfeed speed
- 330mm cutting capacity at 90 degrees, suitable for steel pipes, solid shafts, and structural shapes
- Variable frequency stepless blade speed regulation (15–80 m/min) to cut varied metal alloys
- Rigid cast iron swiveling base with precision detents at common angles (45°, 60°) for fast setup
- Built-in recirculating coolant system and scrap chip collection tray for clean workshop environments

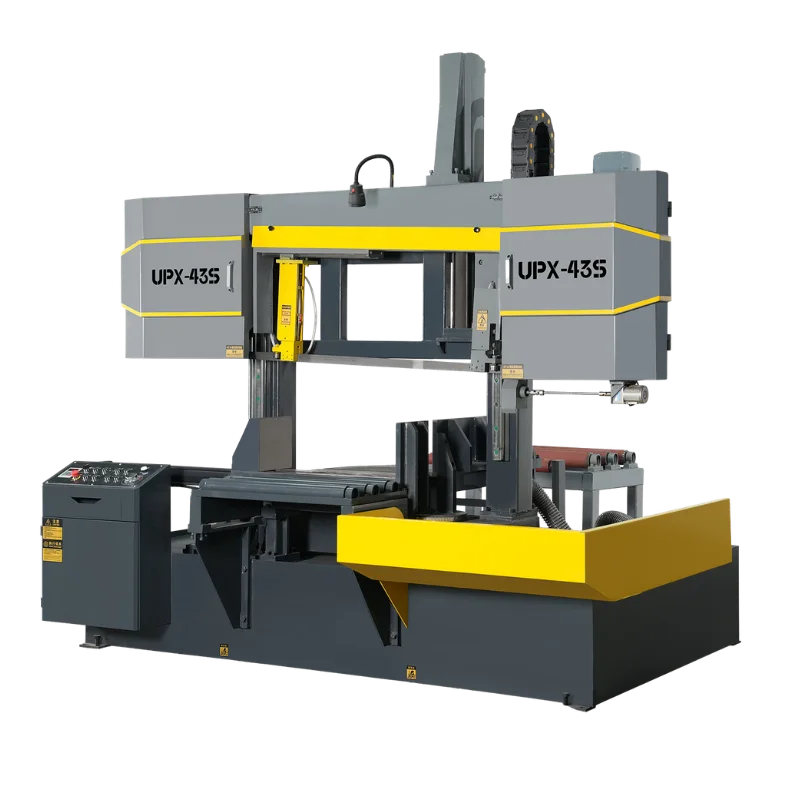

Heavy Duty Angle Cutting Band Saw UPX-43S
- Heavy-duty double-column miter bandsaw engineered for large structural steel sections and plates
- Swiveling saw head design supporting miter cuts up to 45 degrees left and right with high rigidity
- Oversized cutting capacity up to 400mm height and 430mm width at 90 degrees
- Powerful 4.0 kW main drive motor and automatic hydraulic blade tensioning with breakage shut-off
- Premium carbide guide blocks and dual-direction hydraulic clamping vise to secure workpiece
- Includes integrated laser line alignment, automatic powered chip conveyor, and high-flow coolant system
Band Saw Machines Buying Guide & FAQ
How to choose the right miter band saw model (0-60° VFD vs. HX-33 50S vs. HX-33N vs. PX-25 46S vs. UPX-33S vs. UPX-43S)?
Choosing the correct model depends on your production requirements:
1. The 0-60 Degree Variable Frequency Miter Band Saw is standard for general workshops cutting angles up to 60° with stepless VFD control.
2. The H Beam Angle Cutting Miter Band Saw HX-33 50S is a double-column model optimized for left/right dual miter cuts on H-beams and channels up to 500mm.
3. The 45 Degree Miter Band Saw HX-33N is designed for quick 45-degree angle cuts on pipes and comes with a heavy-duty material roller stand.
4. The Double Miter Band Saw PX-25 46S features a double-column gantry structure for clean left/right double miter cuts on structural shapes.
5. The Swivel Head Miter Band Saw UPX-33S features a rotating saw head that swivels for angles instead of moving the material.
6. The Heavy Duty Angle Cutting Band Saw UPX-43S is built for large structural sections up to 400mm × 430mm with gantry rigidity.
What are the main advantages of double column bandsaws?
Double column bandsaws (like our HX-33 50S, PX-25 46S, and UPX-43S models) guide the saw head frame along two heavy-duty pillars/cylinders. This dual-column gantry design provides much greater structural rigidity, minimizes blade vibrations during cutting, and guarantees that the blade cuts perfectly square to the material face. This setup is highly recommended for large steel billets, solid bars, and heavy structural beams.
What automation and design features does a miter band saw offer?
Our miter band saw machines feature swiveling frames or rotating heads (like the UPX-33S and UPX-43S) that allow angle cuts without turning long workpieces in the workshop. Automation features include hydraulic clamping, NC/PLC angle program presets (on the HX-33 50S), variable speed VFD controls, integrated laser line generators, and automatic scraper or auger chip conveyors.
What are the standard delivery times and payment terms?
We require a 30% TT deposit to confirm the order, and the remaining 70% TT balance before shipment. Standard manual and semi-automatic bandsaws have a lead time of roughly 30 to 35 days, while custom gantry or automatic CNC systems can take 40 to 45 days.
