Structural Steel Band Saw Machines
RAXMEKBANDSAW provides high-precision industrial metal cutting solutions, including our Structural Steel Band Saw G 60 80S, Heavy Structural Profile Band Saw G2-50 60S, Heavy Duty Structural Steel Band Saw UP1 7043AI, and Structural Profile Cutting Band Saw G1-4550S.
Advanced Metal Sawing Solutions
As a leading metal cutting bandsaw machine manufacturer in China, RAXMEKBANDSAW CNC pursues advanced sawing technology and stable hydraulic systems. We provide high-precision, high-efficiency gantry structural steel saws, high and low tilt-profile cutting machines, and AI-powered feed-regulated structural profile bandsaws like our G 60 80S, G2-50 60S, UP1 7043AI, and G1-4550S models to support your workshop productivity.
Our Metal Cutting Band Saw Lineup

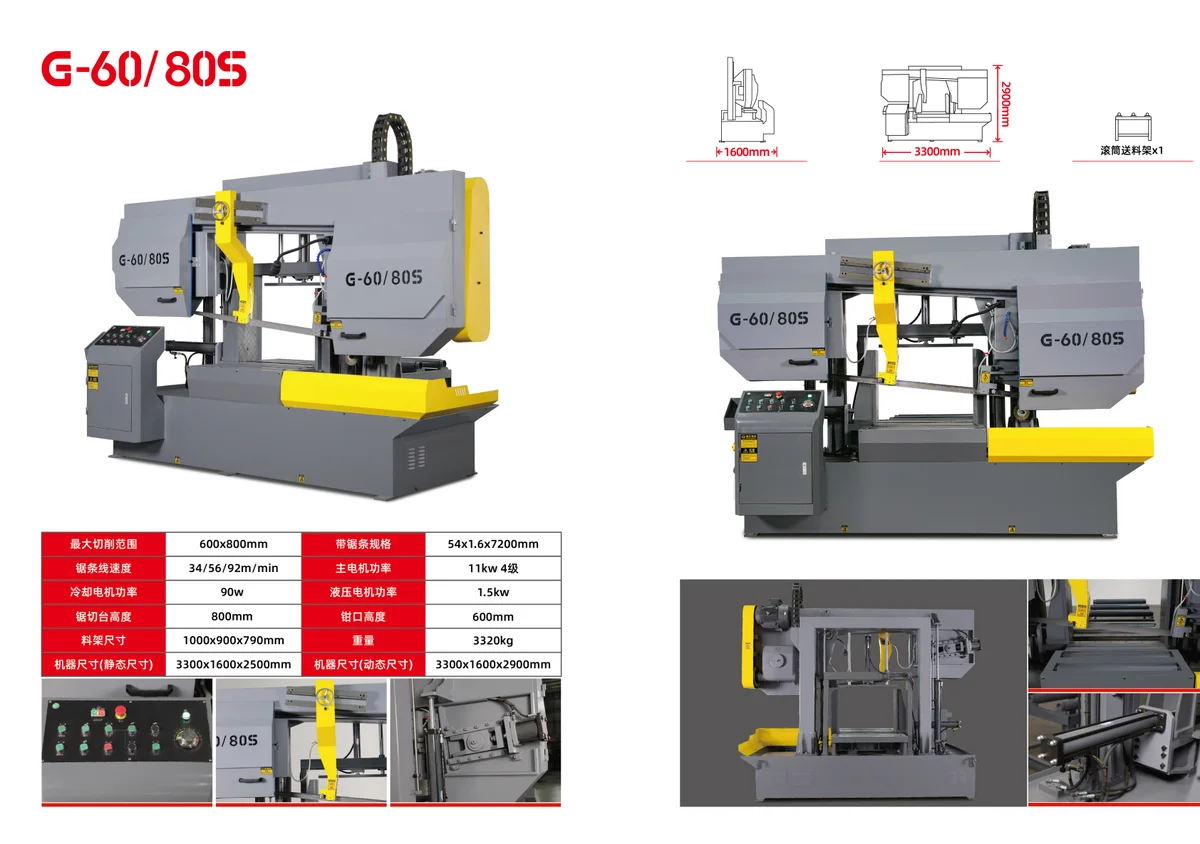

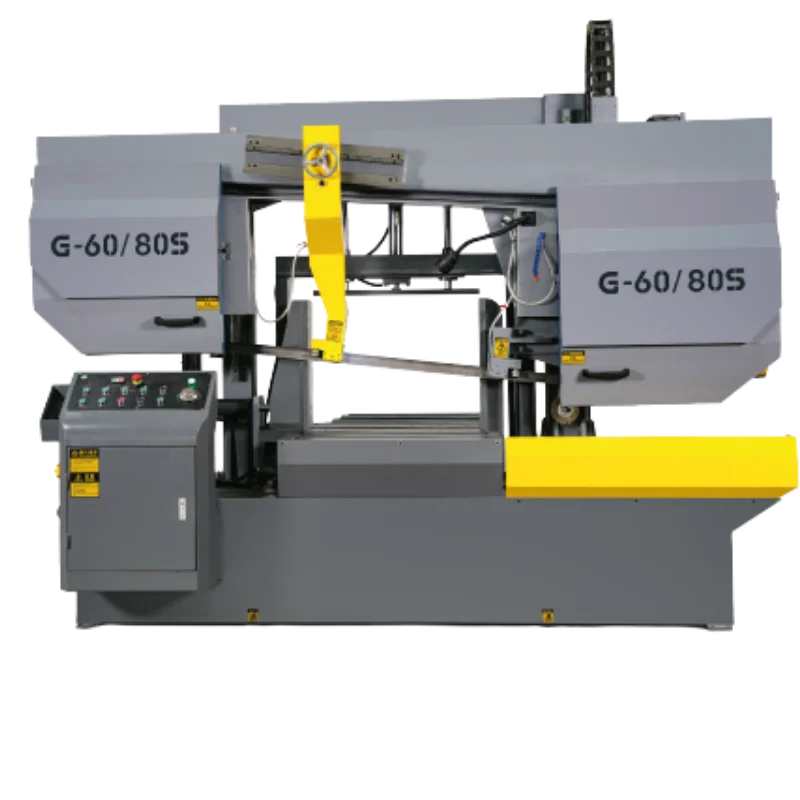

Structural Steel Band Saw G 60 80S
- Semi-automatic double-column horizontal band saw engineered for heavy structural steel and sections
- Large-capacity cutting support up to 800mm width and 600mm height, ideal for H-beams and channels
- Rigid double-column gantry guide frame with precision-ground steel pillars to eliminate blade vibration
- Hydraulic vise clamping system and controlled hydraulic downfeed rate for smooth, straight sawing paths
- Infinitely variable blade speed regulation via VFD inverter to match various structural metal shapes
- Integrated flood coolant system, scrap chip tray, and powered wire cleaning brush for clean operations

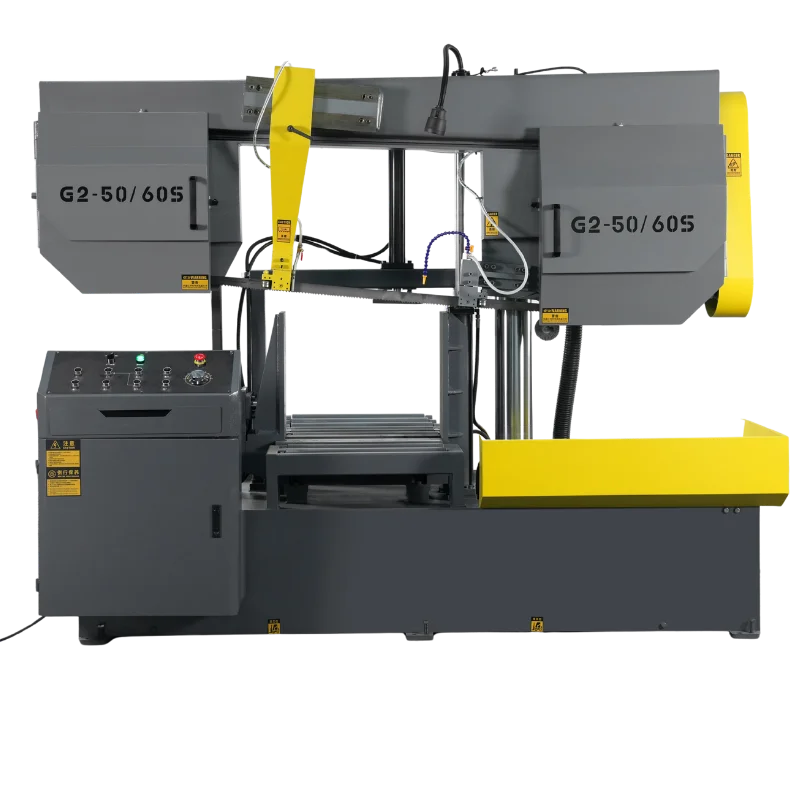

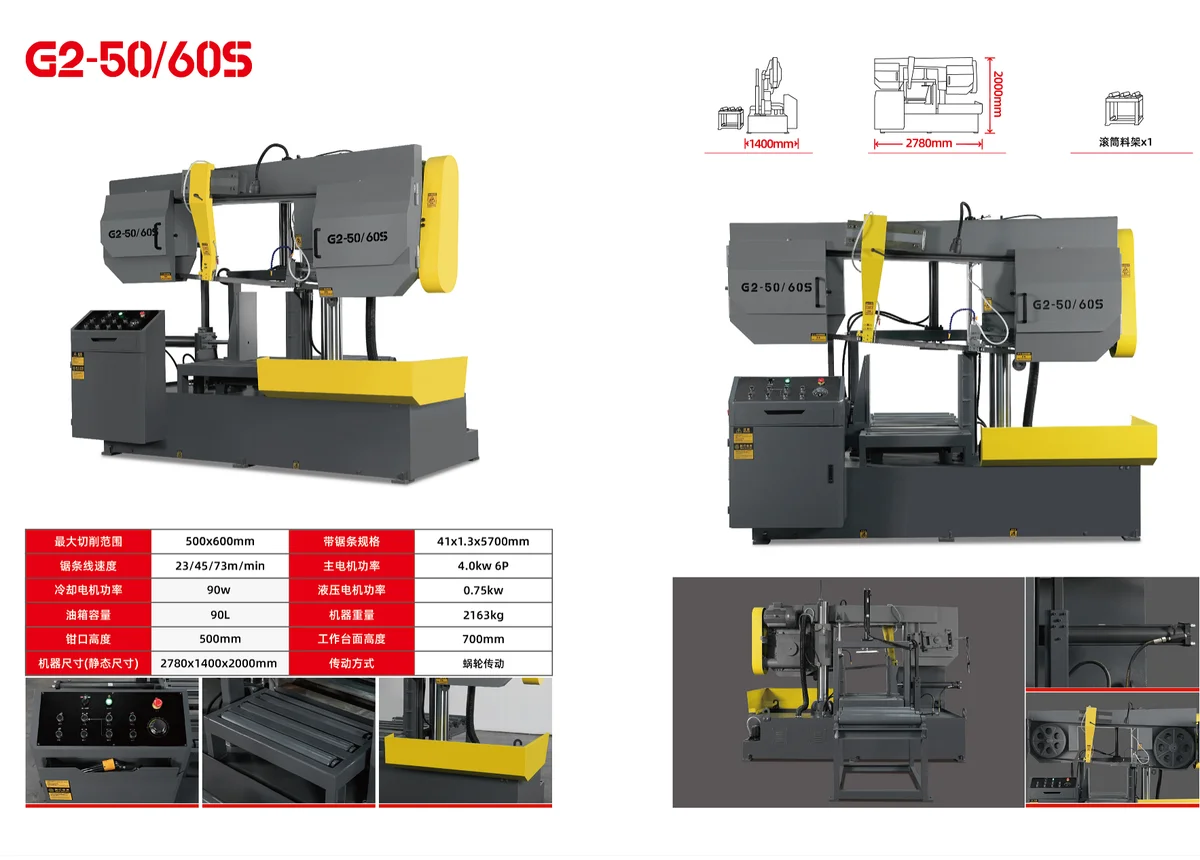

Heavy Structural Profile Band Saw G2-50 60S
- Heavy-duty structural profile sawing machine with a cutting capacity of 600mm width and 500mm height
- Innovative tilt saw frame design reduces blade engagement on H-beam flanges to prevent binding and glazing
- High-torque gear reducer transmission coupled with a powerful main motor for stable metal profile cutting
- Hydraulic dual-vise clamping secures workpieces tightly on both sides of the cut to ensure squareness
- Automatic shut-off switch and hydraulic blade tensioning system with safety shut-off sensors
- Comes standard with heavy-duty material roller tables to support long structural profiles
Heavy Duty Structural Steel Band Saw UP1 7043AI
- AI-powered automatic structural steel bandsaw with real-time feed force auto-regulation system
- Intelligent control system detects tooth loading and adjusts downfeed rate to protect bimetal blade teeth
- Capacity of 700mm width and 430mm height, designed for high-volume fabrication shop operations
- Fully automatic PLC controller with HMI touchscreen interface for batch programming and diagnostics
- Servo-motor driven automatic shuttle feed indexer and hydraulic bundle cutting clamp attachment
- Includes automatic scraper-type chip conveyor, high-flow cooling, and laser line alignment guides

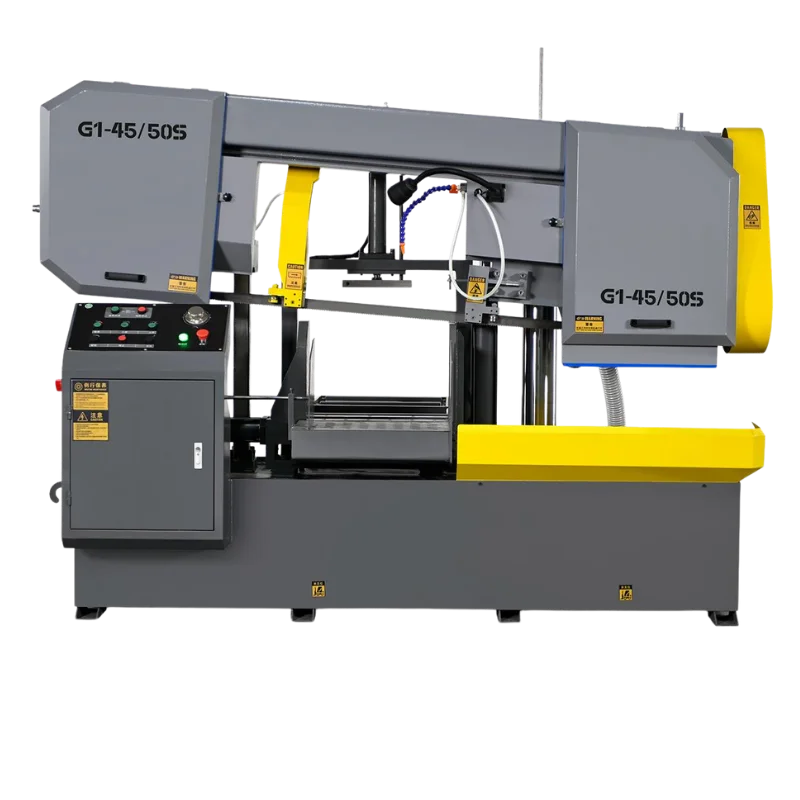

Structural Profile Cutting Band Saw G1-4550S
- Semi-automatic double-column metal band saw optimized for hollow structural sections and tubing
- Cutting capacity of 500mm width and 450mm height, perfect for medium-sized fabricators
- Heavy bimetal blade guides with hydraulic carbide guide pads for high sawing straightness
- Variable frequency stepless blade speed control (15-80 m/min) to cut varied structural steel alloys
- Electro-hydraulic feeding system with fine-tuning flow valve for precise feed rate adjustments
- Compact, space-saving gantry frame with low maintenance requirements and long structural lifetime
Band Saw Machines Buying Guide & FAQ
How to choose the right structural steel band saw model (G 60 80S vs. G2-50 60S vs. UP1 7043AI vs. G1-4550S)?
Choosing the correct model depends on your production requirements:
1. The Structural Steel Band Saw G 60 80S is a high-capacity semi-automatic gantry saw designed for H-beams and structural sections up to 800mm wide.
2. The Heavy Structural Profile Band Saw G2-50 60S features a tilt saw frame to prevent blade binding and web/flange teeth damage on steel profiles.
3. The Heavy Duty Structural Steel Band Saw UP1 7043AI is fully automatic and uses AI load regulation to adjust feed rates dynamically and prevent blade breakages.
4. The Structural Profile Cutting Band Saw G1-4550S is a compact semi-automatic gantry saw optimized for pipes, hollow sections, and small structural steel.
What are the main advantages of double column bandsaws?
Double column bandsaws (like our G 60 80S, G2-50 60S, UP1 7043AI, and G1-4550S models) guide the saw head frame along two heavy-duty pillars/cylinders. This dual-column gantry design provides much greater structural rigidity, minimizes blade vibrations during cutting, and guarantees that the blade cuts perfectly square to the material face. This setup is highly recommended for large steel billets, solid bars, and heavy structural beams.
What automation and design features does a structural steel band saw offer?
Our structural steel band saw machines feature robust double-column structures with hydraulic guide pads and optional frame tilting mechanism to minimize blade friction. Automation features include AI feed-force control (on the UP1 7043AI), hydraulic clamping, automatic scraper chip conveyors, and laser line generators.
What are the standard delivery times and payment terms?
We require a 30% TT deposit to confirm the order, and the remaining 70% TT balance before shipment. Standard manual and semi-automatic bandsaws have a lead time of roughly 30 to 35 days, while custom gantry or automatic CNC systems can take 40 to 45 days.
